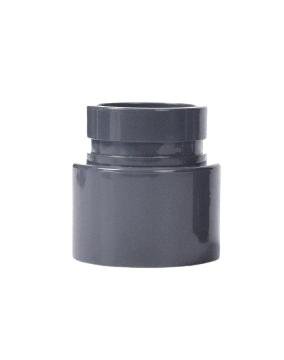

Copy Forest Joint

Overview of Copy Forest Joint​

The Copy Forest Joint​ is a high-performance piping connector engineered for precision and durability in industrial, plumbing, and agricultural systems. Designed to seamlessly integrate with UPVC (unplasticized polyvinyl chloride) pipelines, this joint ensures leak-proof connections, exceptional corrosion resistance, and long-term reliability in demanding environments. Its innovative design simplifies installation while maintaining structural integrity under extreme pressure (rated 1.0–1.6 MPa) and temperature conditions (0°C–60°C). Ideal for water supply, chemical transport, drainage, and irrigation systems, the Copy Forest Joint enhances pipeline efficiency with a service life exceeding 50 years, offering a sustainable alternative to traditional metal fittings .

Key Features of Copy Forest Joint​

1. Leak-Proof Design​ – Precision-molded with tight-sealing mechanisms to prevent fluid leakage, even under high-pressure conditions .
2. Corrosion & Chemical Resistance​ – Highly resistant to acids, alkalis, and abrasive substances, ensuring compatibility with industrial effluents and agricultural chemicals .
3. Lightweight & Easy Installation​ – Up to 50% lighter than metal joints, reducing labor costs and enabling quick assembly without specialized tools .
4. Smooth Interior Surface​ – Minimizes friction loss, prevents clogging, and maintains optimal flow efficiency in fluid transport systems .
5. Durable Material Composition​ – Constructed from robust UPVC, capable of withstanding UV exposure, physical stress, and environmental degradation .
6. Eco-Friendly & Non-Toxic​ – Complies with international potable water standards (e.g., ISO 4422), making it safe for drinking water systems .

Typical Applications of Copy Forest Joint​

• Water Supply Systems​ – Ensures secure, non-toxic connections in potable water networks .
• Chemical Transportation​ – Resists corrosive fluids in industrial plants and chemical processing units .
• Agricultural Irrigation​ – Facilitates efficient water distribution in farming and sprinkler systems .
• Mining & Drainage​ – Ideal for dewatering corrosive liquids in mines and urban drainage infrastructure .
• Electrical Conduits​ – Provides insulated, protective housing for electrical and telecommunications cables .

Technical Specifications​

Table: Standard Copy Forest Joint Specifications

Parameter​	Specification​
Material​	UPVC (Unplasticized Polyvinyl Chloride)
Pressure Rating​	1.0–1.6 MPa
Temperature Range​	0°C to 60°C
Service Life​	>50 years
Sizes Available​	DN15 to DN600 (customizable)
Standards​	Complies with DIN, ISO 4422, and other international standards

公称尺寸φ	φD1	φD2	φD3	L1	L2
DN25-A	32	32	40	23	56
DN25-B	33.4	32	40	23	56
DN32-32	42	32	40	22	64
DN32-40	42	40	50	26	59
DN40-40	48	40	50	28	66
DN40-50	48	50	60	31	66
DN50-50	60	50	63	31	64.2
DN50-60	60	60	74	38	76
DN50-63	60	63	74	38	76
DN65-A	73	75	87	43	79
DN65-B	76	75	87	43	79
DN80	89	90	104	51	85
DN100A	114	110	125	61	96
DN100B	114	94	110	61	95

Frequently Asked Questions (FAQs)​

Q1: Can the Copy Forest Joint be customized for specific project needs?​

Yes, we offer customization in dimensions (DN15–DN600), pressure ratings, and material compositions to meet unique application requirements .

Q2: How does the joint ensure leak-proof performance?​

Its precision engineering, combined with reinforced sealing surfaces, guarantees a tight fit under varying pressure conditions .

Q3: Is the Copy Forest Joint environmentally safe?​

Absolutely. It is manufactured from non-toxic, recyclable UPVC, aligning with green building and water safety standards .

Q4: What is the expected delivery time for orders?​

Standard orders ship within 2–3 weeks. Customized requests may require additional time based on specifications .

Q5: How are quality issues addressed?​

We provide a robust quality guarantee. Any concerns documented with photos/test data are promptly resolved via replacements or refunds .
