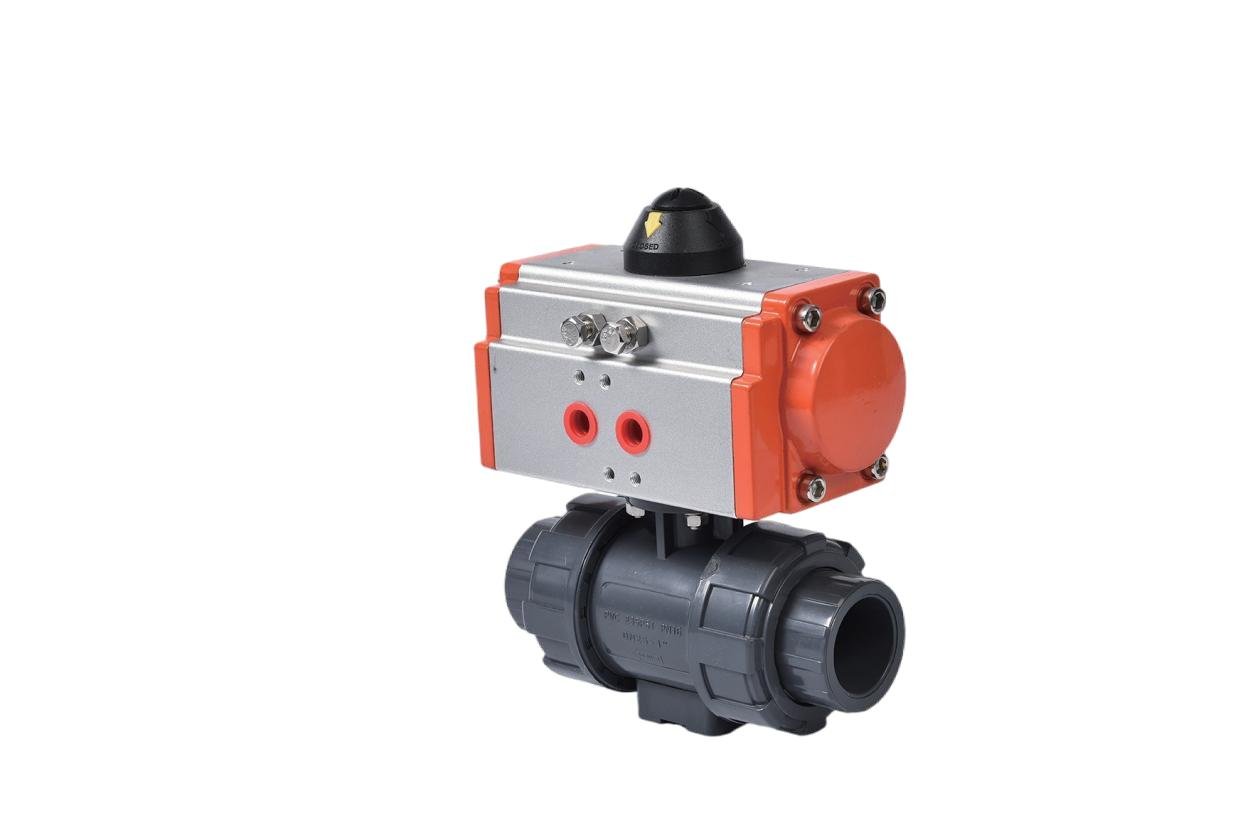

Pneumatic Ball Valve
Send Inquiry
| Number |
Name |
Material |
Quantity |
Unit |
| 3/4/8/9 |
O-Ring |
EPDM/VITON |
7 |
PCS |
| 01 |
Socket/Socket End |
UPVC/CPVC/PPH |
2 |
PCS |
| 02 |
Nut |
UPVC/CPVC/PPH |
2 |
PCS |
| 05 |
Adapter / Connector |
SUS304 |
1 |
PCS |
| 06 |
Rod/Bar |
UPVC/CPVC/PPH |
1 |
PCS |
| 07 |
Bracket/Support |
UPVC/SUS304 |
1 |
PCS |
| Number |
Name |
Material |
Quantity |
Unit |
| 10 |
Liner |
UPVC/CPVC/PPH |
1 |
PCS |
| 11 |
Sealing Ring |
PTFE |
2 |
PCS |
| 12 |
Ball |
UPVC/CPVC/PPH |
1 |
PCS |
| 13 |
Body |
UPVC/CPVC/PPH |
1 |
PCS |
| 14 |
Screw |
SUS304 |
6-8 |
PCS |
| 15 |
Electric Actuator |
SUS304 |
1 |
PCS |
| Specification( SIZE) |
d |
d1 |
d2 |
| ANSI |
DIN |
JIS |
CNS |
PPH |
ANSI |
DIN |
JIS |
CNS |
PPH |
| 1/2″ (15) |
15 |
21.40 |
20.25 |
22.30 |
22.40 |
19.30 |
21.25 |
20.05 |
21.85 |
21.90 |
19.00 |
| 3/4″ (20) |
20 |
26.75 |
25.25 |
26.30 |
26.40 |
24.10 |
26.58 |
25.05 |
25.85 |
25.90 |
23.80 |
| 1″ (25) |
25 |
33.52 |
32.25 |
32.33 |
34.50 |
31.00 |
33.28 |
32.05 |
31.85 |
33.90 |
30.70 |
| 1~1/4″ (32 |
32 |
42.28 |
40.25 |
38.43 |
42.50 |
39.00 |
42.05 |
40.05 |
37.85 |
41.90 |
38.60 |
| 1~1/2″ (40) |
40 |
48.40 |
50.25 |
48.46 |
48.60 |
49.00 |
48.12 |
50.05 |
47.75 |
47.90 |
48.60 |
| 2″ (50) |
50 |
60.45 |
63.25 |
60.56 |
60.60 |
61.90 |
60.18 |
63.05 |
59.75 |
59.90 |
61.40 |
| 2~1/2″ (65) |
63 |
73.30 |
75.25 |
76.60 |
76.70 |
73.60 |
72.85 |
75.05 |
75.87 |
75.90 |
72.30 |
| 3″ (80) |
75 |
89.25 |
90.35 |
89.60 |
89.70 |
88.30 |
88.70 |
90.05 |
88.83 |
88.90 |
86.90 |
| 4″ (100 |
90 |
114.60 |
110.35 |
114.70 |
115.00 |
108.00 |
114.10 |
110.05 |
113.98 |
113.80 |
106.40 |
